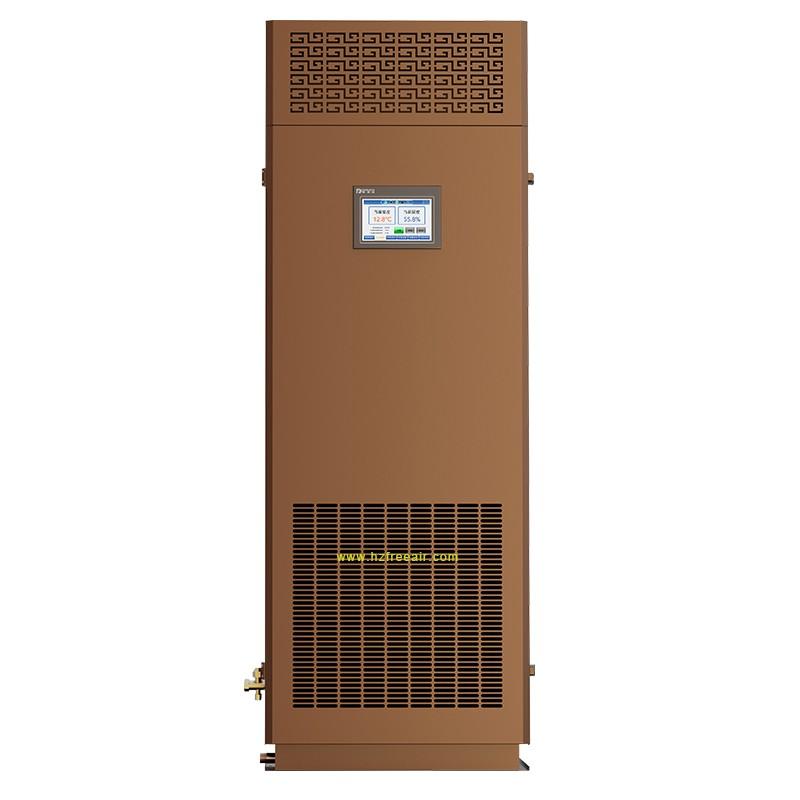

Name: Thermostat humidistat Series for Cellar FL-HF21.5

Model Number: FL-HF21.5

Features:

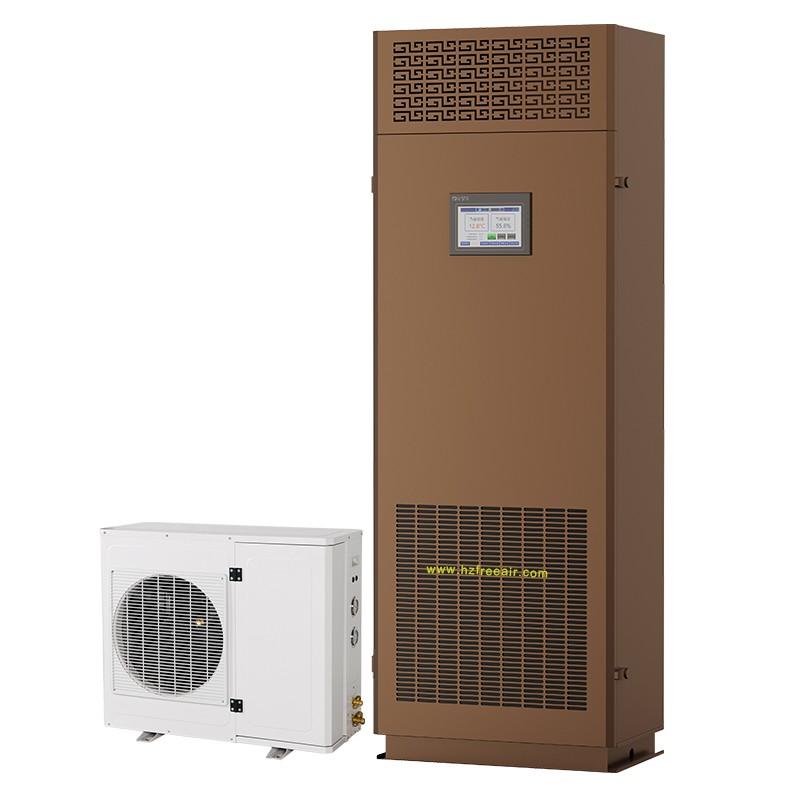

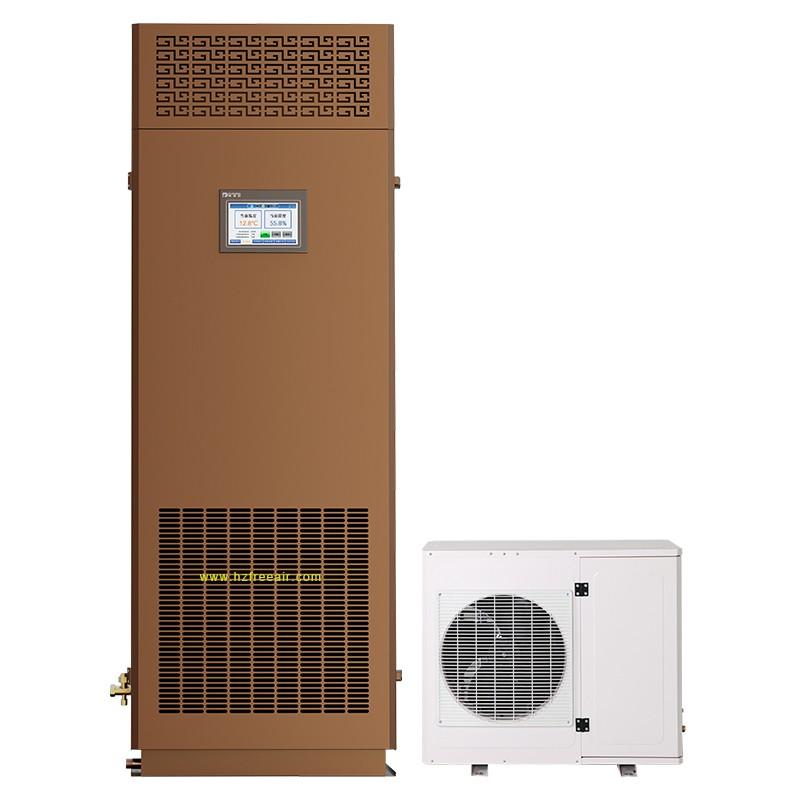

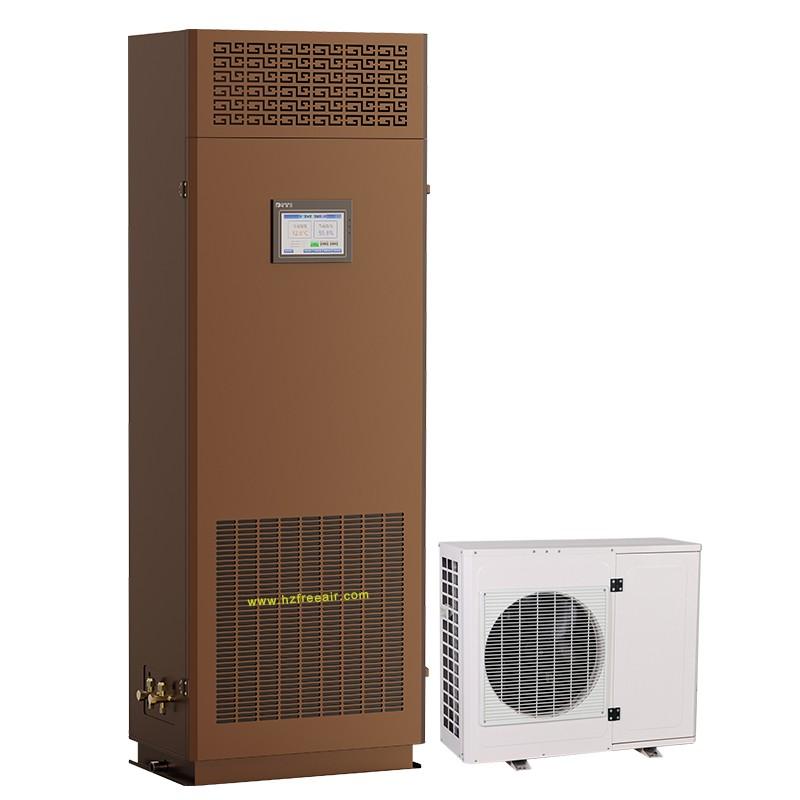

1)Split design,ultra-low noise
2)Panasonic compressor, long service life
3)Programmable PLC controller
4)Brand electronic spare parts,stable quality
5)RS485(optional)

ModelFL-21.5C
Cooling capacity21.5KW
Heating capacity9KW
Suitable area50-62㎡
Air volume4300m³/h
Temperature/humidity control range16-28℃±1℃；RH45-75%±5%
Refrigerant gasR22/R410A/R407C
Heating typeElectrical heater
Humidification typeAtomization/Wet film humidification
Water intake method Automatic or manual
Humidity capacity4kg/h
Voltage of indoor machine220V/50HZ
Voltage of outdoor machine
RelaySchneider
AC contactor
Control systemProgrammable PLC with LCD touch screen
Power input20kw
Indoor machine dimension(L*W*H)1220*740*2050mm
Outdoor machine dimension(L*W*H)785*780*1150mm
Indoor machine N.W.350KG
Outdoor machine N.W.100KG
