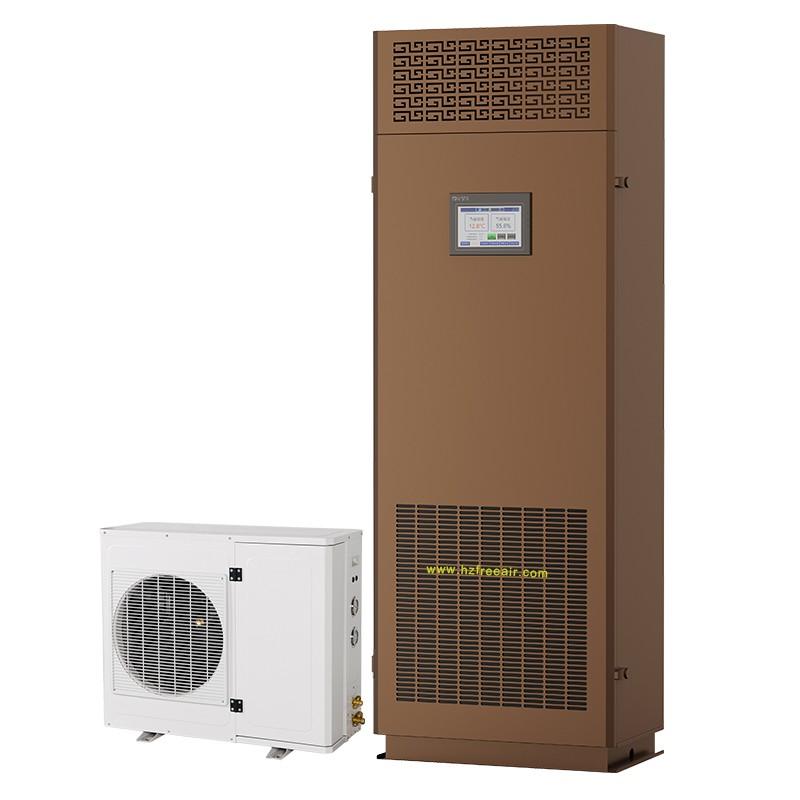

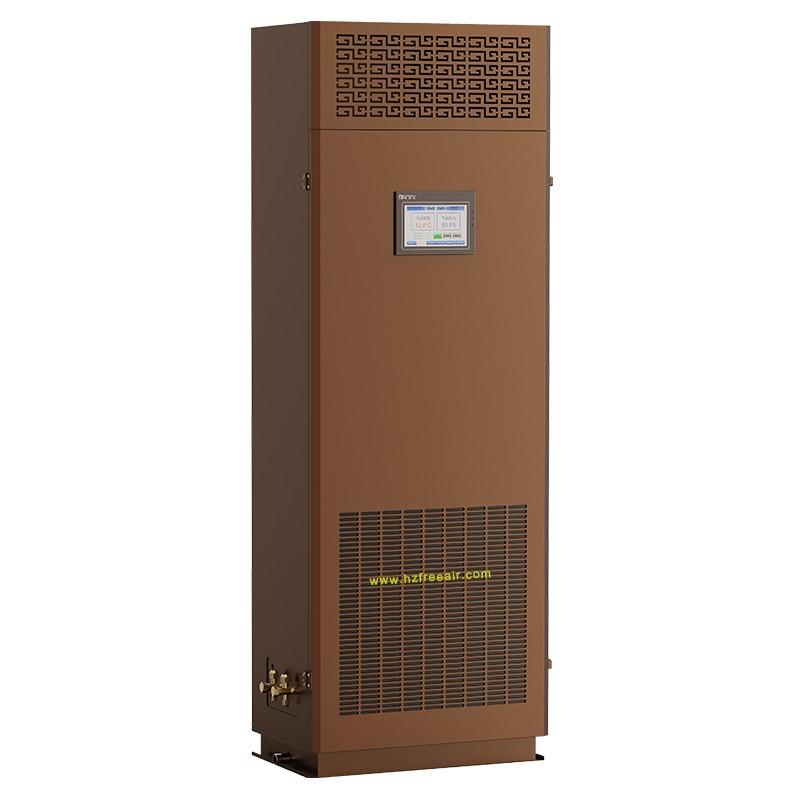

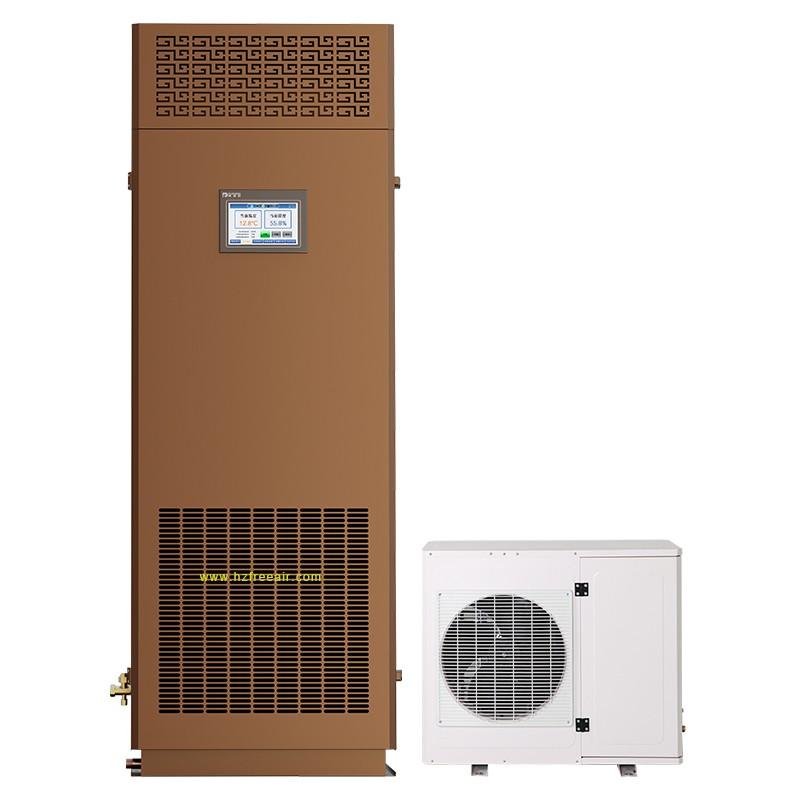

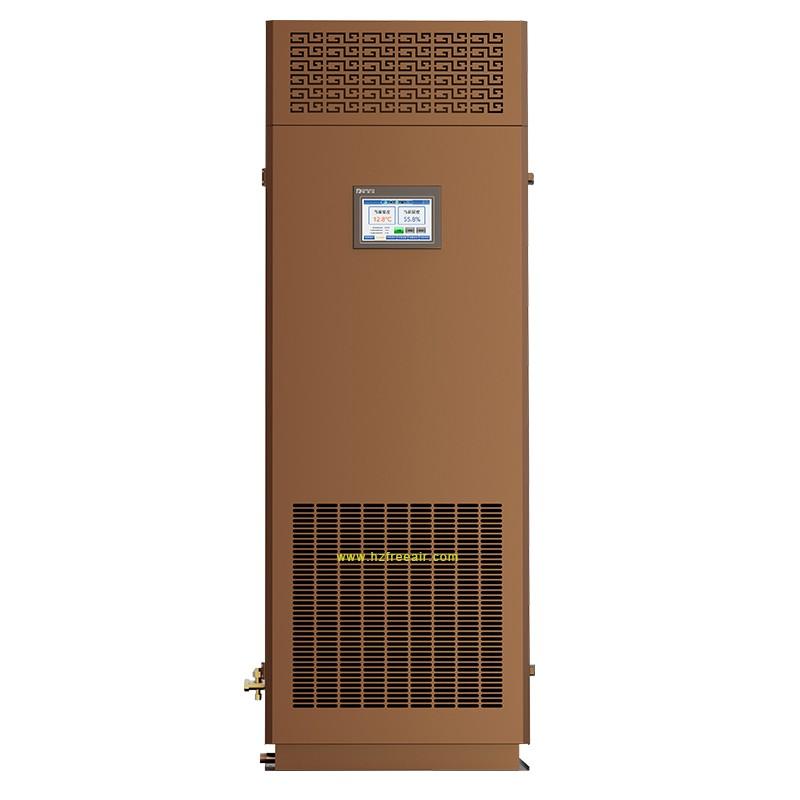

Name: Thermostat humidistat Series for Cellar FL-HF8.2

Model Number: FL-HF8.2

Features:
1)Split design,ultra-low noise
2)Panasonic compressor, long service life
3)Programmable PLC controller
4)Brand electronic spare parts,stable quality
5)RS485(optional)

ModelFL-HF8.2
Cooling capacity8.2KW
Heating capacity5.0KW
Suitable area20-28㎡
Air volume2100m³/h
Temperature/humidity control range16-28℃±1℃；RH45-75%±5%
Refrigerant gasR22/R410A/R407C
Heating typeElectrical heater
Humidification typeAtomization/Wet film humidification
Water intake method Automatic or manual
Humidity capacity4kg/h
Voltage of indoor machine220V/50HZ
Voltage of outdoor machine
RelaySchneider
AC contactor
Control systemProgrammable PLC with LCD touch screen
Power input10.8kw
Indoor machine dimension(L*W*H)850*580*1900mm
Outdoor machine dimension(L*W*H)735*635*795mm
Indoor machine N.W.200KG
Outdoor machine N.W.70KG
