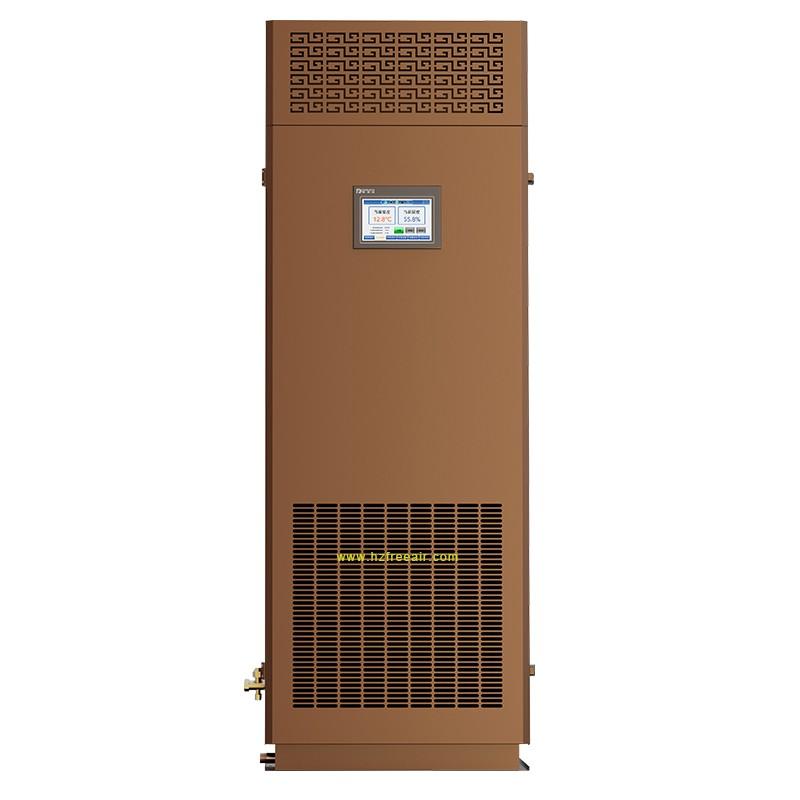

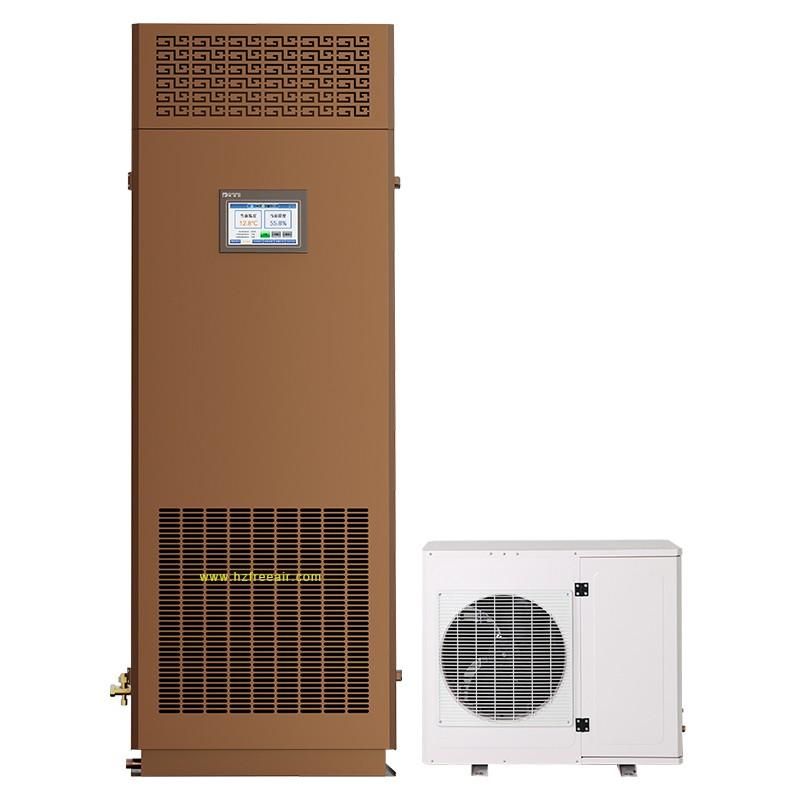

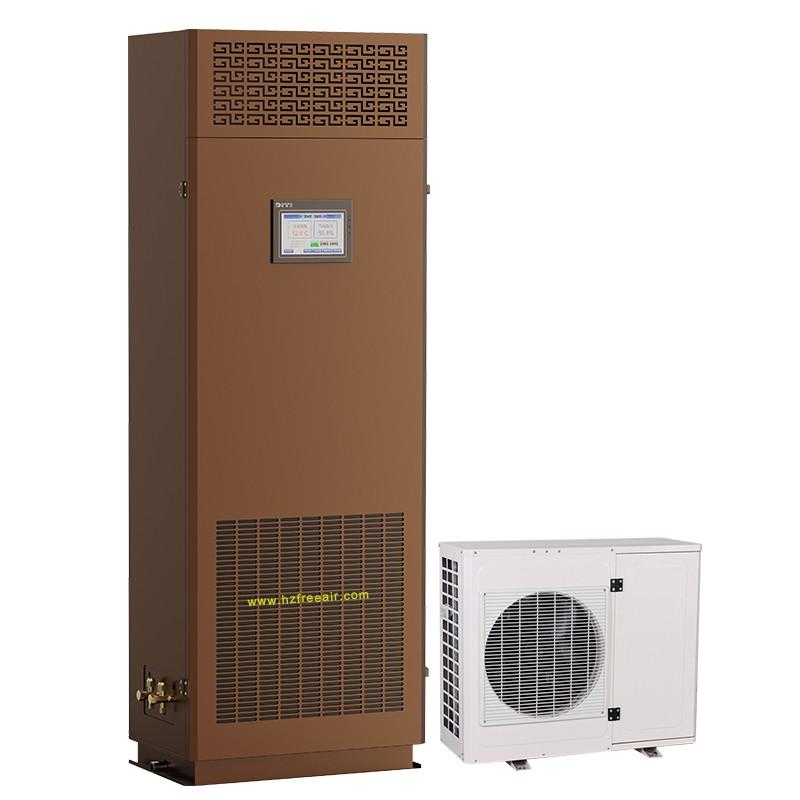

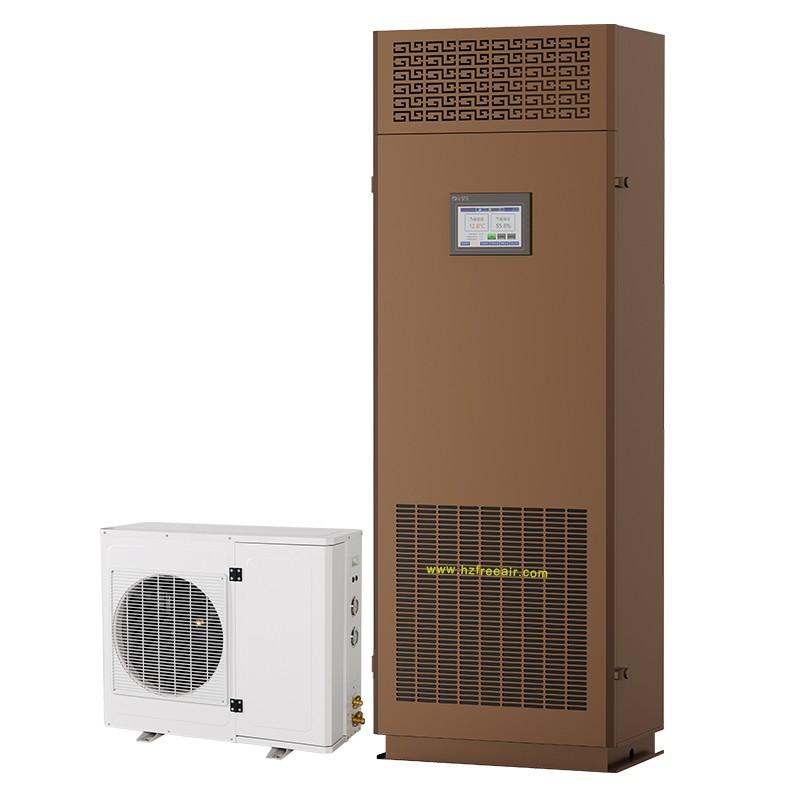

Model Number: FL-HF31.0
Features:
1)Split design,ultra-low noise
2)Panasonic compressor, long service life
3)Programmable PLC controller
4)Brand electronic spare parts,stable quality
5)RS485(optional)
| Model | FL-HF31.0 |
| Cooling capacity | 31.0KW |
| Heating capacity | 15KW |
| Suitable area | 75-88㎡ |
| Air volume | 7000m³/h |
| Temperature/humidity control range | 16-28℃±1℃；RH45-75%±5% |
| Refrigerant gas | R22/R410A/R407C |
| Heating type | Electrical heater |
| Humidification type | Atomization/Wet film humidification |
| Water intake method | Automatic or manual |
| Humidity capacity | 4kg/h |
| Voltage of indoor machine | 220V/50HZ |
| Voltage of outdoor machine | |
| Relay | Schneider |
| AC contactor | |
| Control system | Programmable PLC with LCD touch screen |
| Power input | 31kw |
| Indoor machine dimension(L*W*H) | 1420*740*2150mm |
| Outdoor machine dimension(L*W*H) | 739*739*950mm |
| Indoor machine N.W. | 420KG |
| Outdoor machine N.W. | 160KG |
