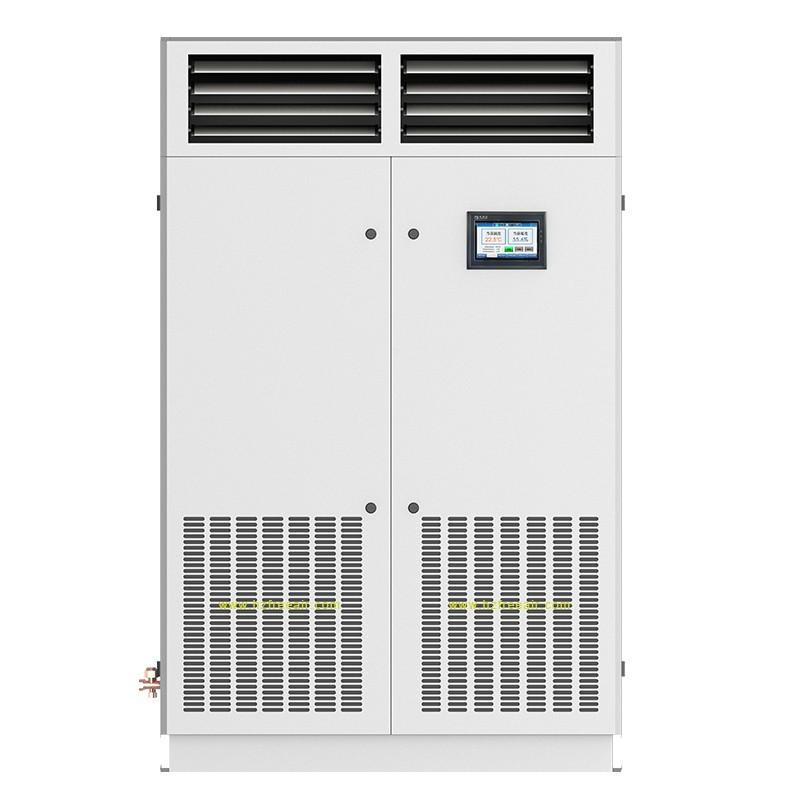

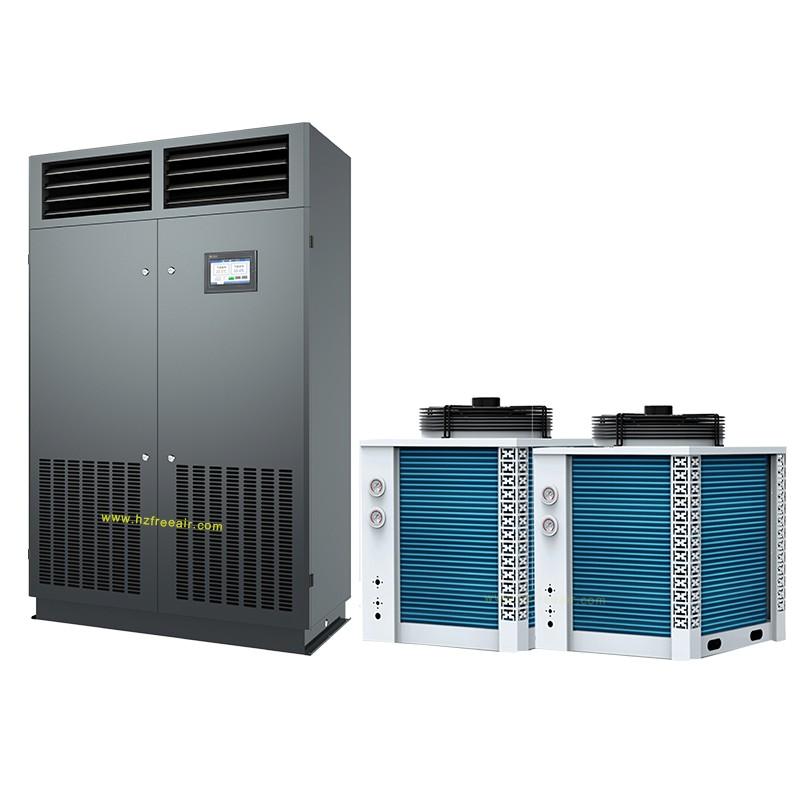

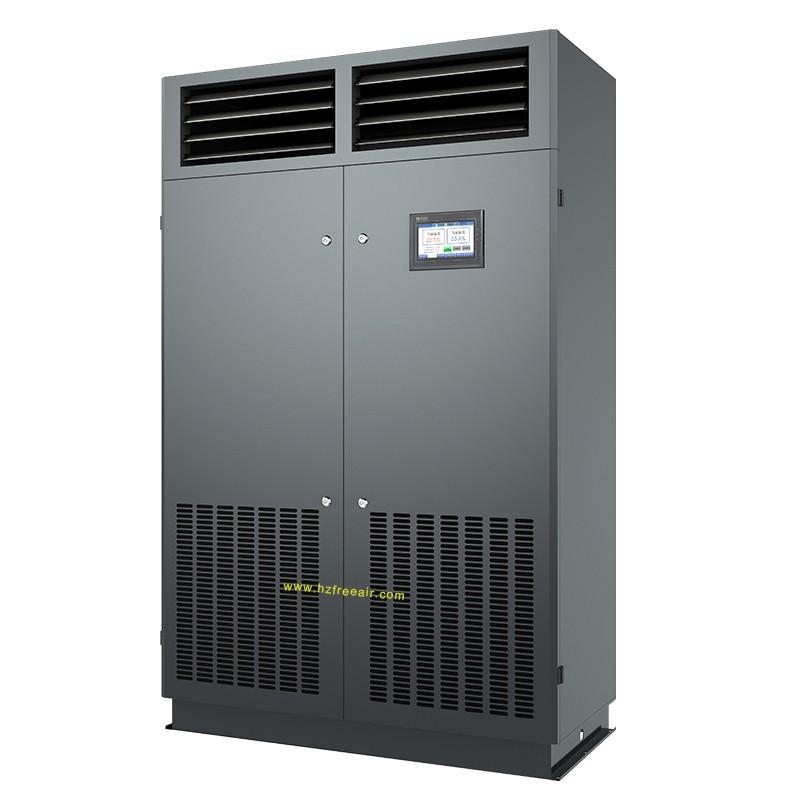

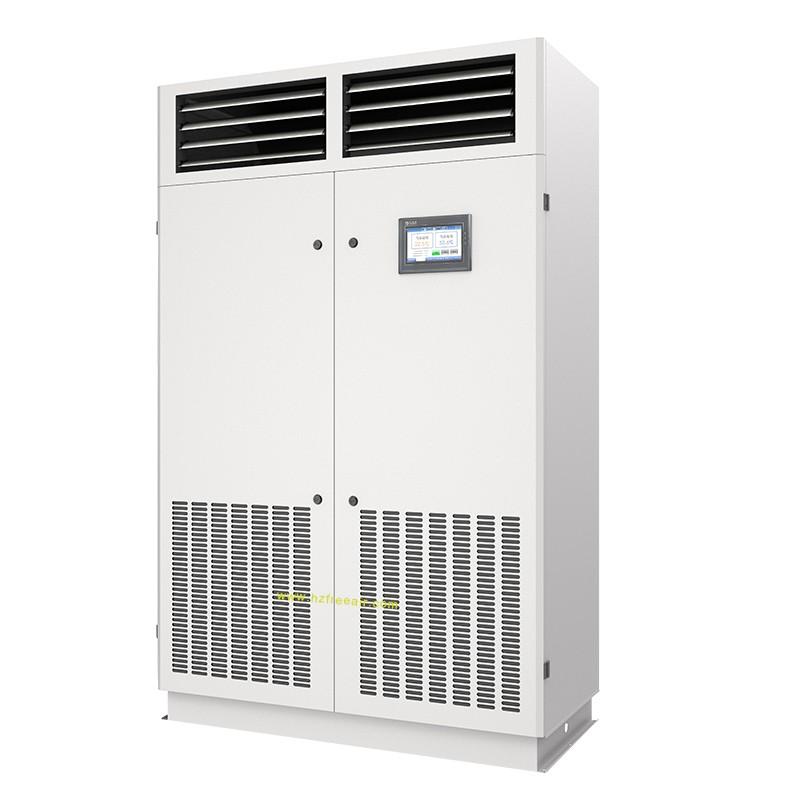

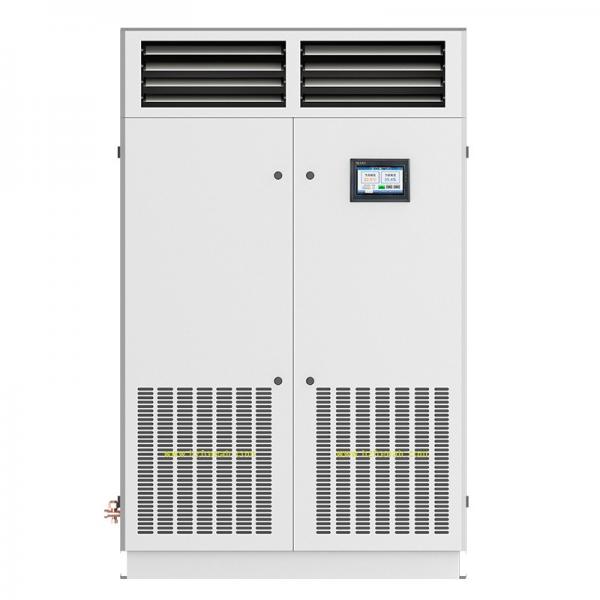

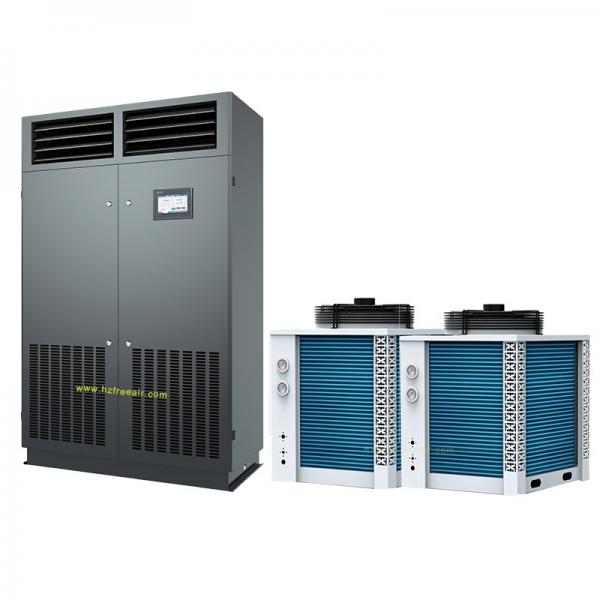

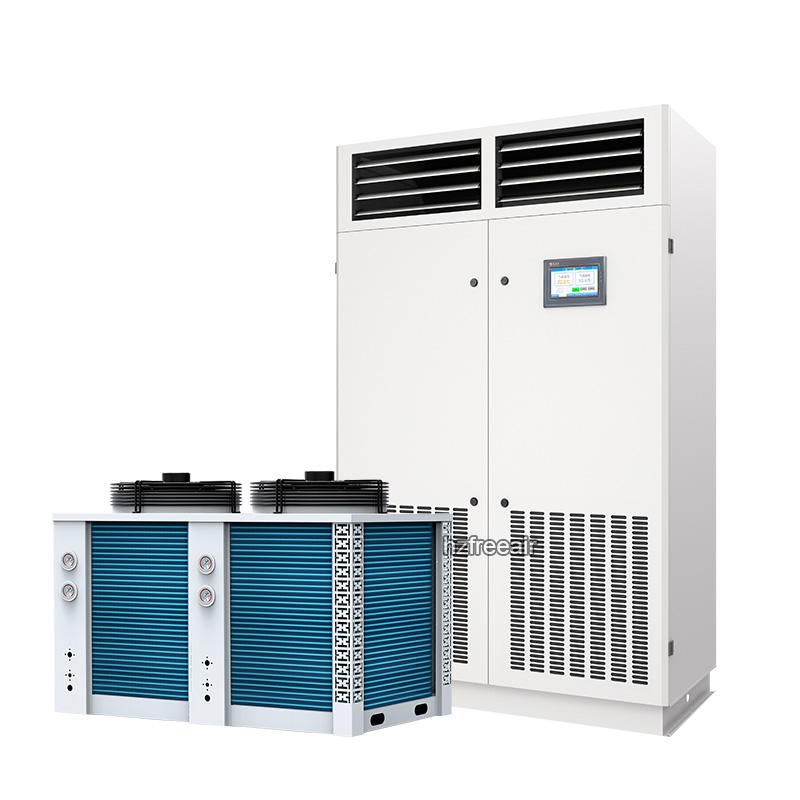

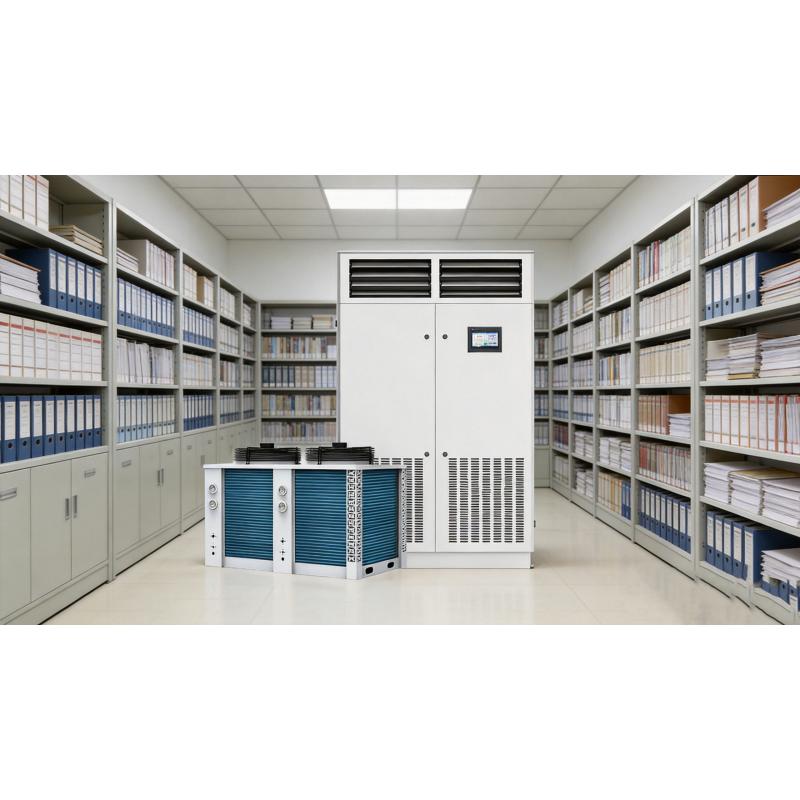

Name: FL-HF52.0

Model Number: FL-HF52.0

Features:
1)Split design,ultra-low noise
2)Panasonic compressor, long service life
3)Programmable PLC controller
4)Brand electronic spare parts,stable quality
5)RS485(optional)

ModelFL-HF52.0
Cooling capacity52.0KW
Heating capacity27KW
Suitable area120-150㎡
Air volume10000m³/h
Temperature/humidity control range16-28℃±1℃；RH45-75%±5%
Refrigerant gasR22/R410A/R407C
Heating typeElectrical heater
Humidification typeAtomization/Wet film humidification
Water intake method Automatic or manual
Humidity capacity10kg/h
Voltage of indoor machine220V/50HZ
Voltage of outdoor machine
RelaySchneider
AC contactor
Control systemProgrammable PLC with LCD touch screen
Power input52.3kw
Indoor machine dimension(L*W*H)1650*850*2200mm
Outdoor machine dimension(L*W*H)860*820*1150mm
Indoor machine N.W.500KG
Outdoor machine N.W.

240KG
