—— Dual Functionality: How Industrial Dehumidifiers with Heating Capabilities Work ——

In industrial production, warehousing, or specialized process environments, air temperature and humidity often demand dual

stringent requirements. Single-function dehumidifiers or heaters frequently compromise one aspect for the other. This is where

industrial dehumidifiers with integrated heating capabilities come into play—not merely a combination of functions, but a

sophisticated air treatment system. Today, we delve into how it operates.


Core Workflow: The Perfect Closed-Loop of Dehumidification and Heating

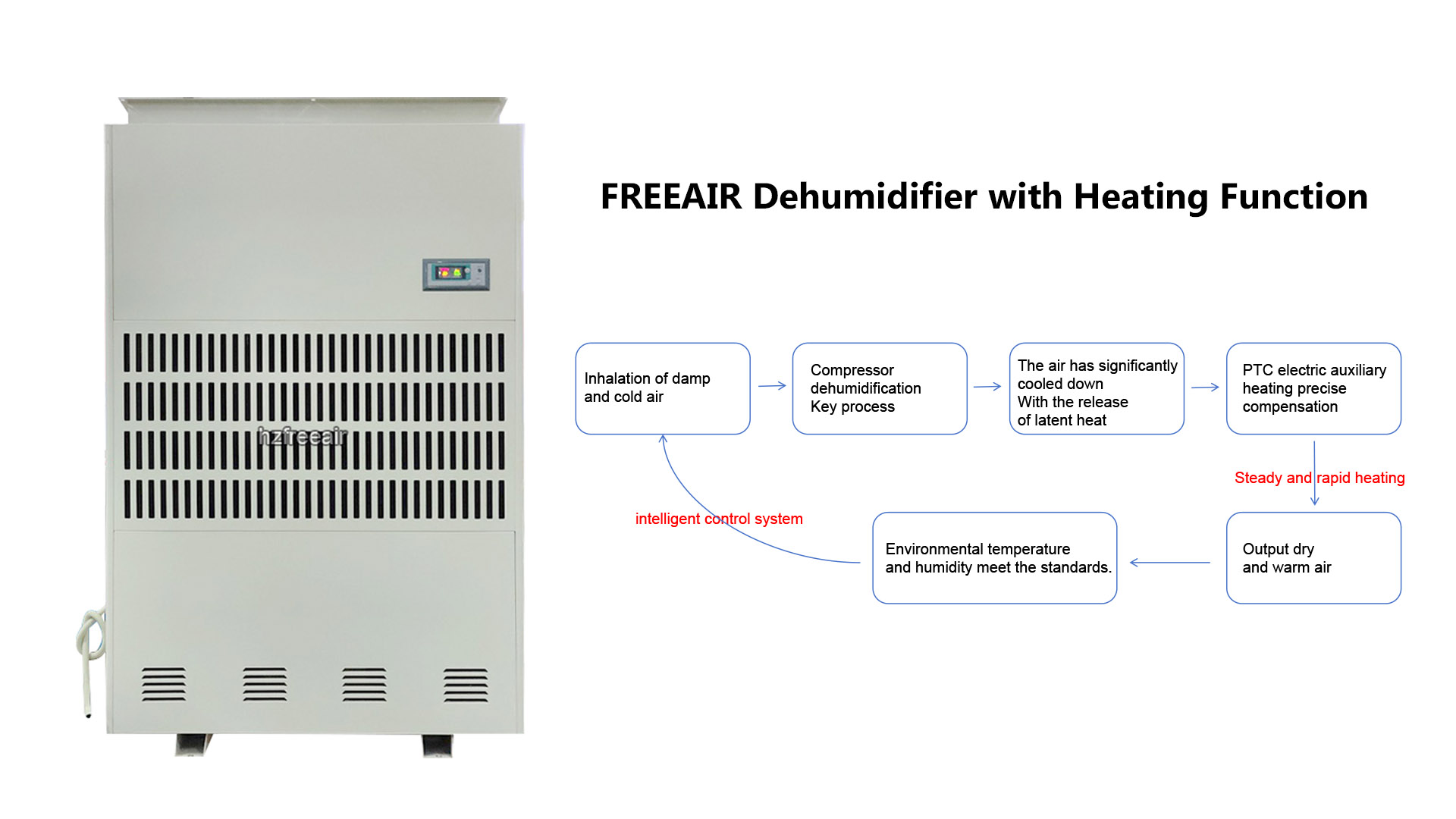

The operation of an industrial dehumidifier with heating functionality can be viewed as an intelligent, efficient process of air

“refinement.” The diagram below clearly illustrates this closed-loop system:



Step 1: Powerful Dehumidification via Compressor (Core Dehydration)

The machine draws in warm, humid air from the environment. This air first flows over the chilled evaporator (condenser).

Here, the water vapor in the air rapidly condenses into droplets upon contact with the cold surface—much like the condensation

forming on a chilled beverage bottle in summer. This condensed water is collected and drained away, leaving the air dry.

This is the core function of the dehumidifier.


Step 2: Air Cooling (Latent Heat Removal)

During dehumidification, air temperature drops significantly. This occurs because the “latent heat” in the air is removed as

water vapor condenses. Thus, air passing through the evaporator becomes dry and cold despite reduced humidity. If discharged

directly, this could cause excessive cooling in winter or temperature-sensitive environments, impacting processes or comfort levels.


Step 3: Built-in Heater Precisely Compensates Temperature (Intelligent Heating)

This embodies the essence of “dual functionality in one unit.” To address the cooling effect, the machine incorporates a

high-efficiency heater (such as PTC ceramic auxiliary heating) within the duct behind the evaporator. PTC heaters feature

self-regulating temperature control, rapid heating, and safe, efficient operation.


Precision Compensation: As dry, cold air flows through the PTC heater, the system precisely heats it. This heating output isn't

fixed; instead, the intelligent control system calculates it based on the set target temperature or real-time ambient temperature,

achieving “on-demand heating” to avoid energy waste.


Step 4: Output Dry, Warm Air (Ideal Result)

Through the coordinated processing of the above three stages, the air discharged from the machine outlet is no longer the cold,

dry air from a standalone dehumidifier nor the humid, hot air from a standalone heater. Instead, it is dry, warm air with optimal

humidity and temperature. This air effectively enhances environmental comfort, ensures the drying quality of industrial products,

and prevents mold growth and rust in warehouses.


Fundamental Differences from Traditional Single-Function Equipment

To illustrate its advantages more clearly, we compare it with conventional single-function equipment:

 Equipment Type Work Results Applicable Scenarios and Limitations

 Traditional

 Single-Function

 Dehumidifier

 Outputs dry

 but cold air.

 In low-temperature environments, increased dehumidification

 intensi fies cooling, potentially causing discomfort to occupants

 and even failing to meet temperature standards in certain settings

 (e.g., precision instrument workshops). Post-dehumidification

 often requires supplemental heating, increasing energy

 consumption and management costs.

 Traditional

 Single-Function

 Space Heater

 Outputs warm

 but humid air.

 It can only raise temperature, not reduce humidity. In humid environ

 ments, heated air may feel “warm,” but high relative humidity

 persists, failing to address fundamental issues like mold growth

 on items, metal oxidation, and wall condensation.

 Industrial

 Dehumidifier with

 Heating Function

 Outputs dry

 and warm air.

 Achieves true integrated temperature and humidity control.

 It actively removes moisture while intelligently compensating

 for heat loss caused by dehumidification, directly creating a stable,

 ideal low-humidity warm environment. This delivers a synergistic

 effect where 1+1 > 2, offering higher energy efficiency and

 simpler management.


Summary

Industrial dehumidifiers with heating functionality seamlessly integrate dehumidification and heating capabilities through a streamlined

workflow: “compressor dehumidification → air cooling → precise heating compensation.” Transcending the role of a basic tool, it evolves

into an intelligent environmental solution expert. Particularly suited for industrial and commercial settings with stringent requirements for

both ‘dryness’ and “warmth,” it single-handedly safeguards the dual equilibrium of the environment.
