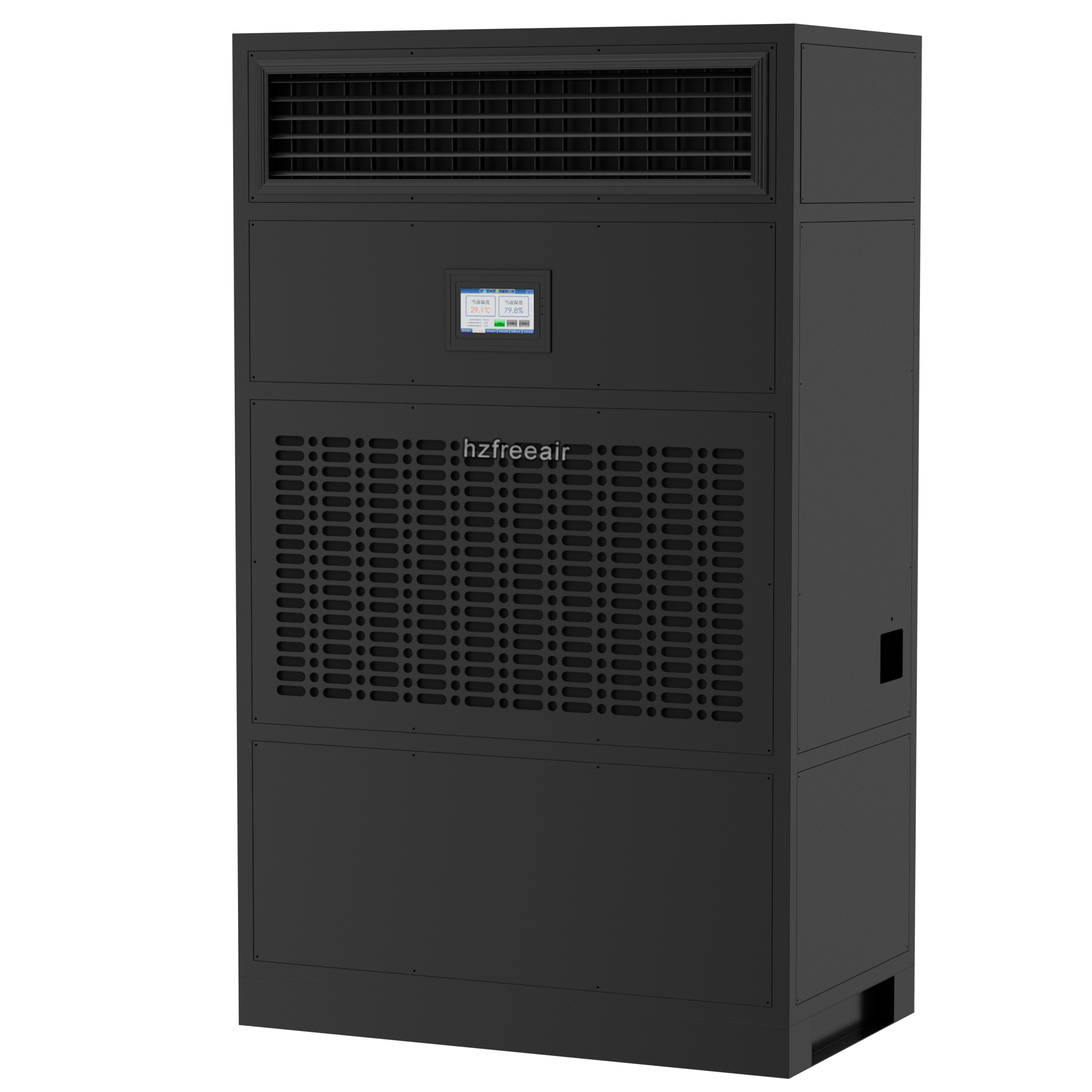

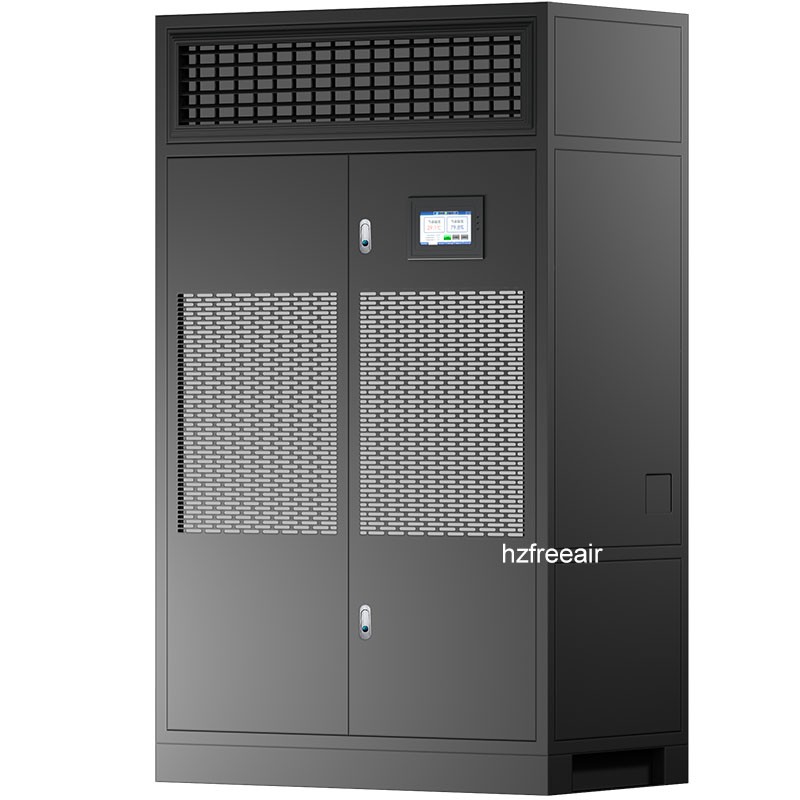

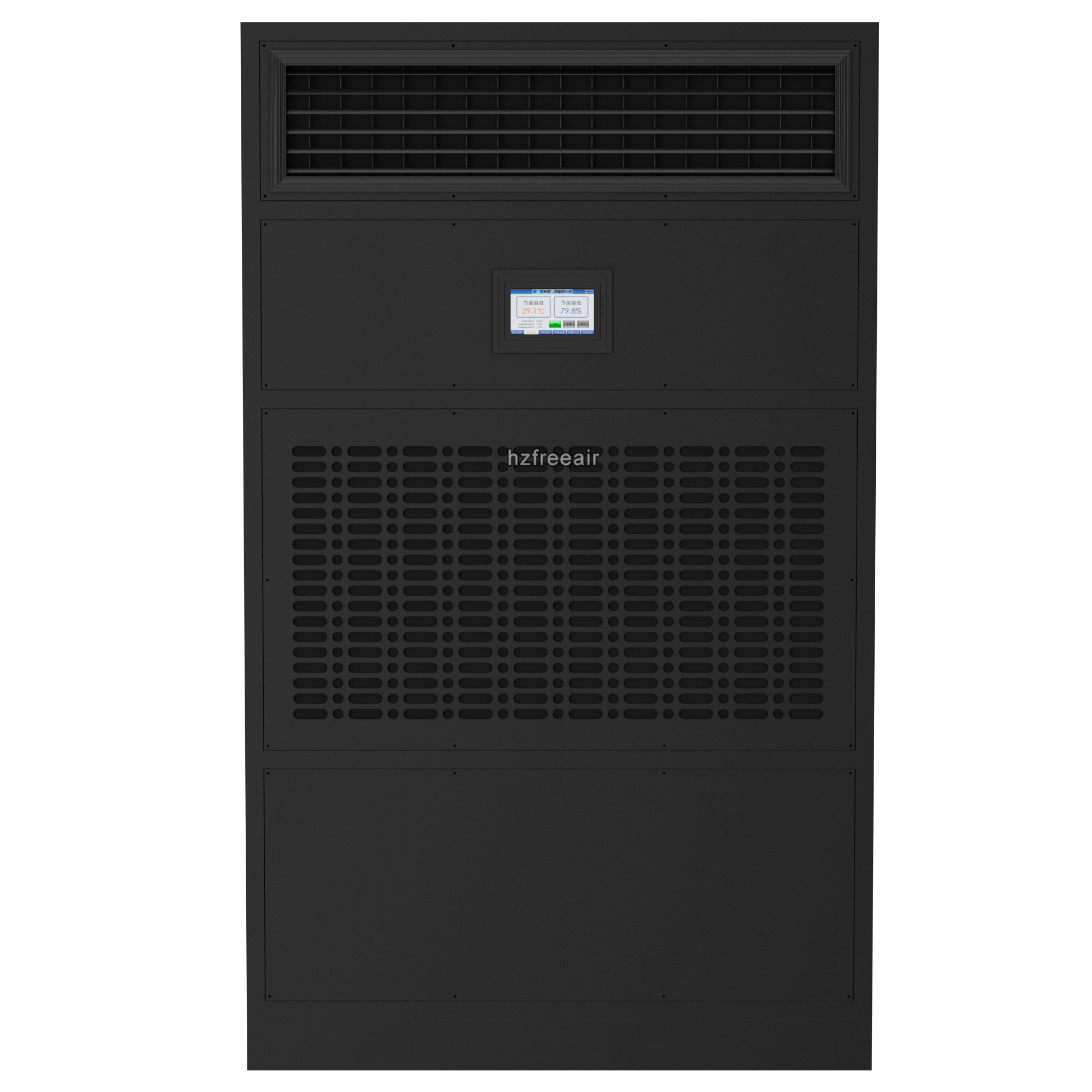

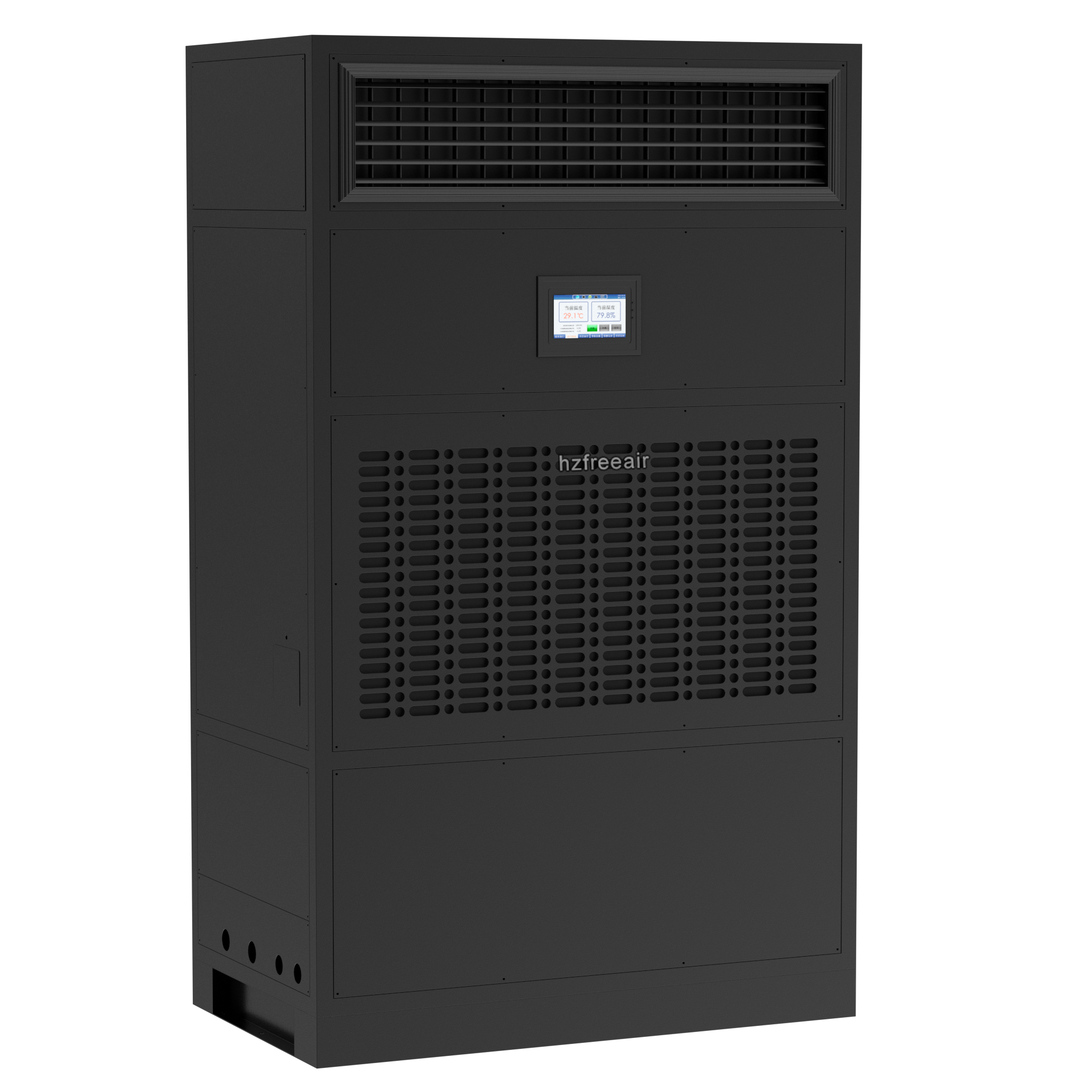

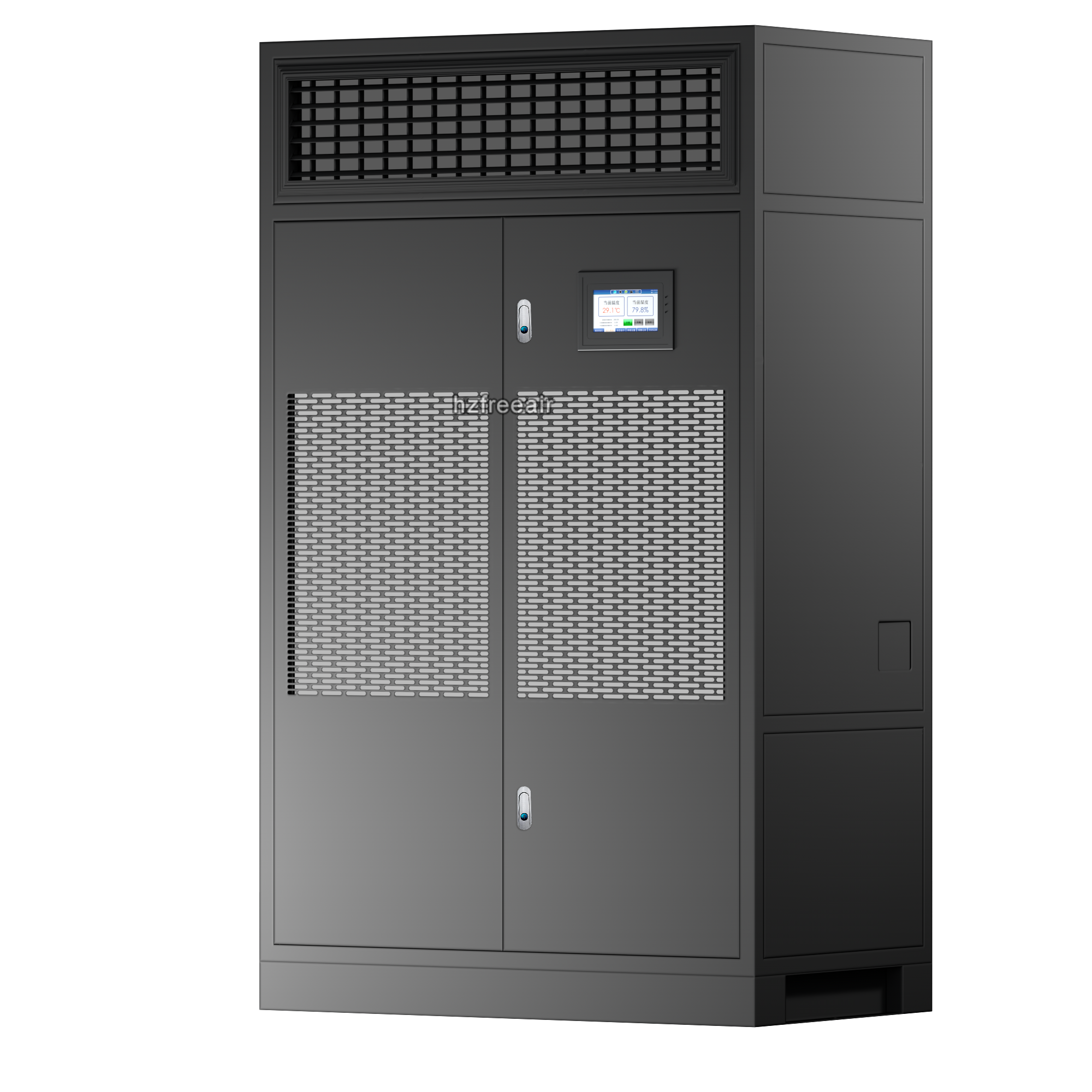

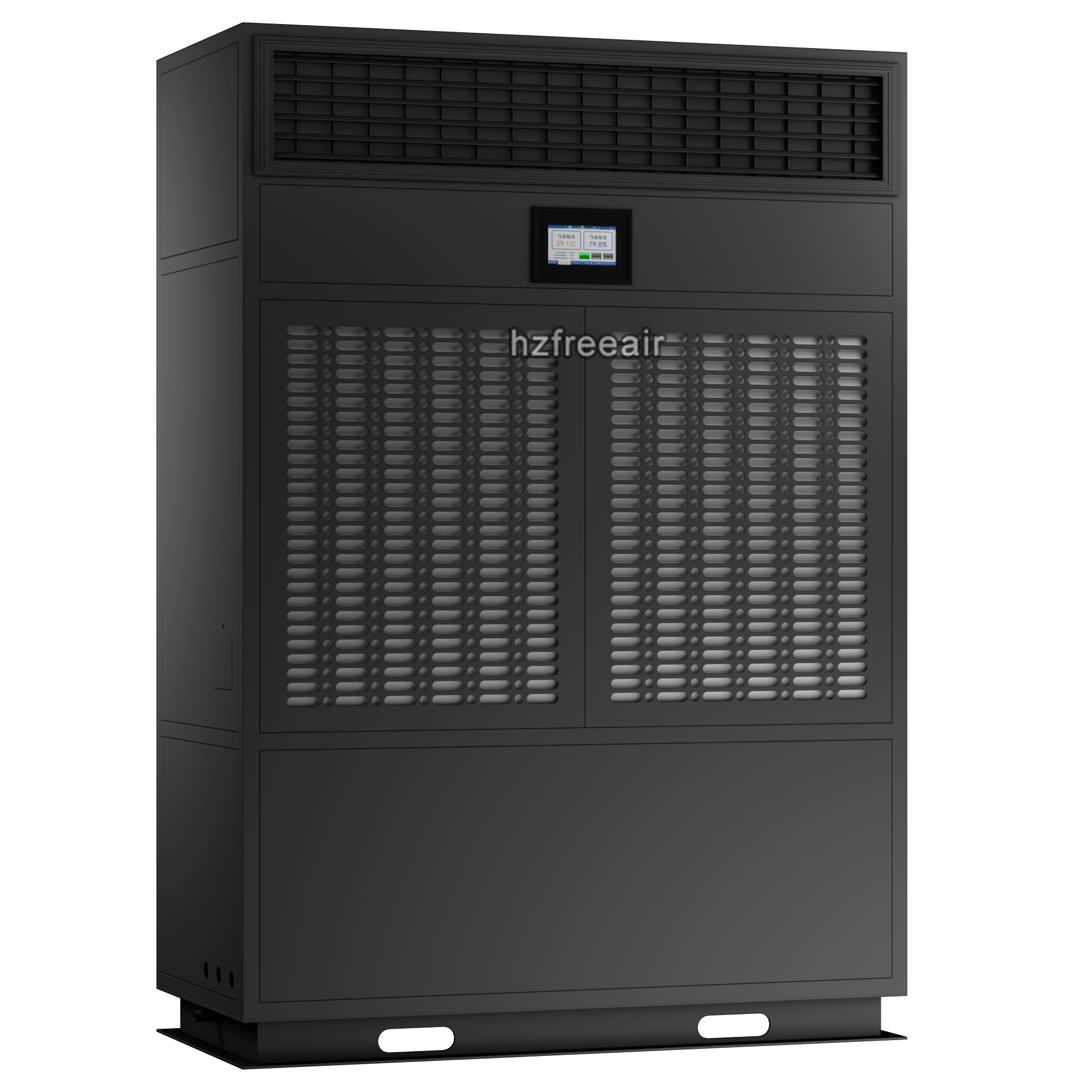

Name: 20KG/H Humidification 480L/D Dehumidification Dehumidifier Humidifier 2 in 1 Unit

Model Number: FL-TS20

Features:
1)Can keep humidity in a constant value
2)Famous brand compressor, long service life
3)Micro-computer control or programmable PLC controller
4)RS485(optional)
5)Brand electronic spare parts,stable quality
6) Power off memory
7)Fault self-diagnosis



 Model No. FL-HS20
 Power Supply 380V/50HZ/3PH

 Dehumidify capacity

 (30℃,RH80%)

 480L/D
 Refrigerant R22/R410A/R407C
 Humidify Capacity 20kg/hour
 Humidify type(Optional) Cooling pad/Electrode humidifier
 Total power 9200W
 Air volume 5000m3/h
 Water filling mode Automatic/Manual

 Communication mode/

 Purify mode(Standard)

 Modbus RTU RS485/

 Photohydrogenion generator

 Working Temperature 5-40℃
 Unit Size(L*W*H) 1200*700*2000mm
 Weight 260kg



Multiple humidifier

Wet flm humidifier and electrode humidifier is optional



Smart LCD Control Panel

7" big touch screen,easy to operate.lf any faults, it will displayIn word,not fault code,more clearly.



Famous Brand HumiditySensor(HDK)

High precision temperature and humidity sensor, can display real-time room temperature and humidity



Low noise centrifugal fan

Customized big ESP fan with big air volume.

The F class grade to protect the fan to use more long life.

Multiple styles of fans are Available,like the Ec fans etc.

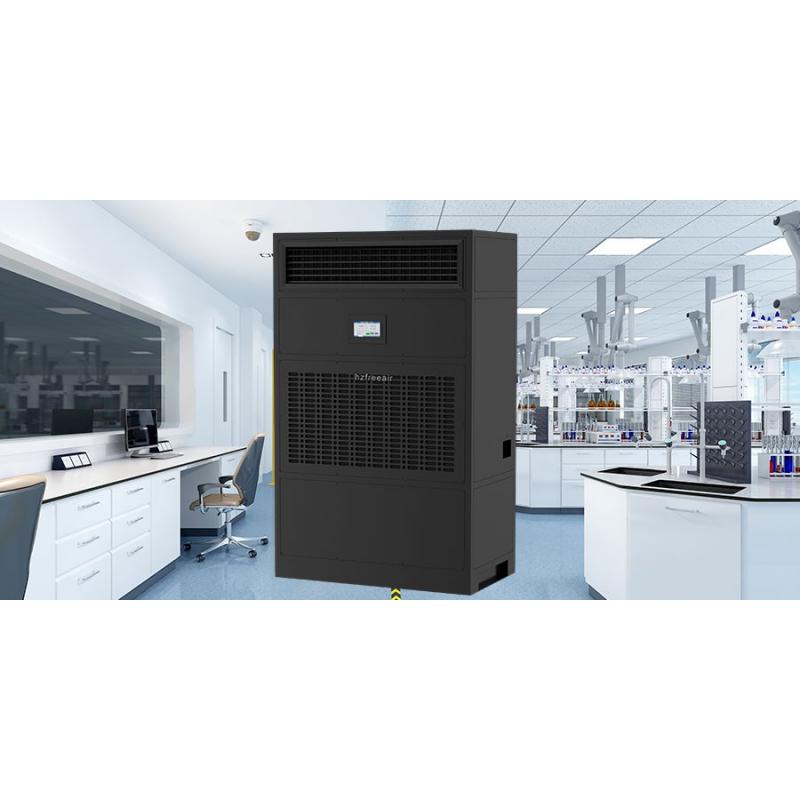

Suitable Area:

* Offices, Libraries, Computer rooms, Precision instrument rooms, Hospitals, Warehouses

* Chemical fiber, Pharmaceuticals, Glass, Food, Electronics, Metallurgy, Printing, Basements

* Electricity, Telecommunications, Cigarettes, Printing, Tea, Leather, Textiles

* Medical Instrument, Vegetables Frozen, Precise Instrument

* Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

* Lithium Battery Industry, Biotechnology Pharmaceutical Industry


During the using process, it can help users to eliminate various losses caused by humidity, and make the production

and storage of products can be carried out in the right humidity, so as to ensure the quality of the products.


Why Choose Us

1)With a strong technical team with more then 10 years experience in refrigeration industry.

2)A variety of dehumidifiers,humidifiers and air conditioning units can be available,we also supply the thermostat&humidistat units.

3)We have not only the high quality products and competitive price, but also have excellent services too.

4)OEM & ODM are welcomed.
