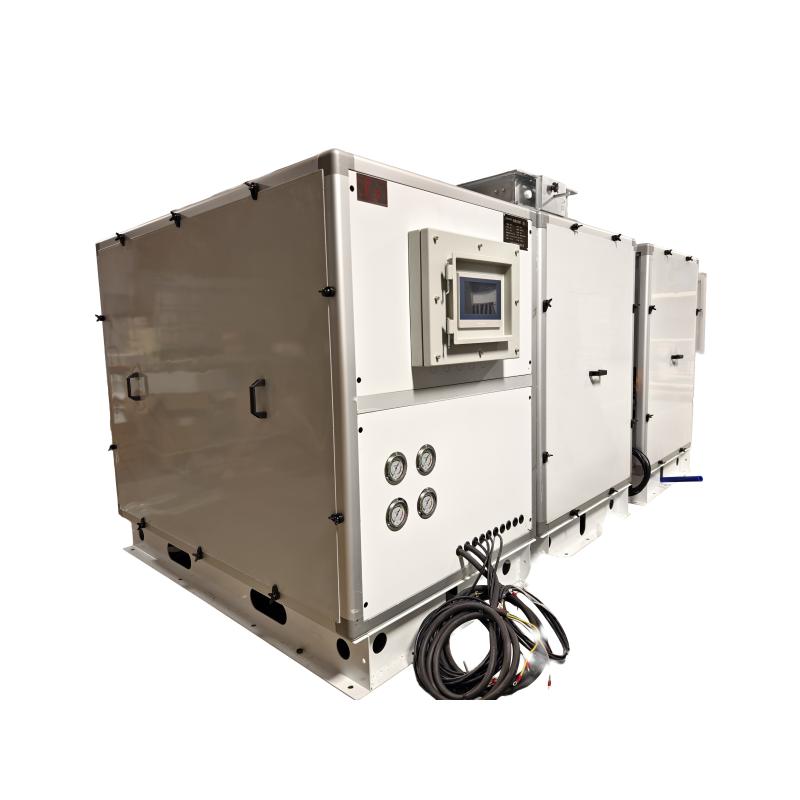

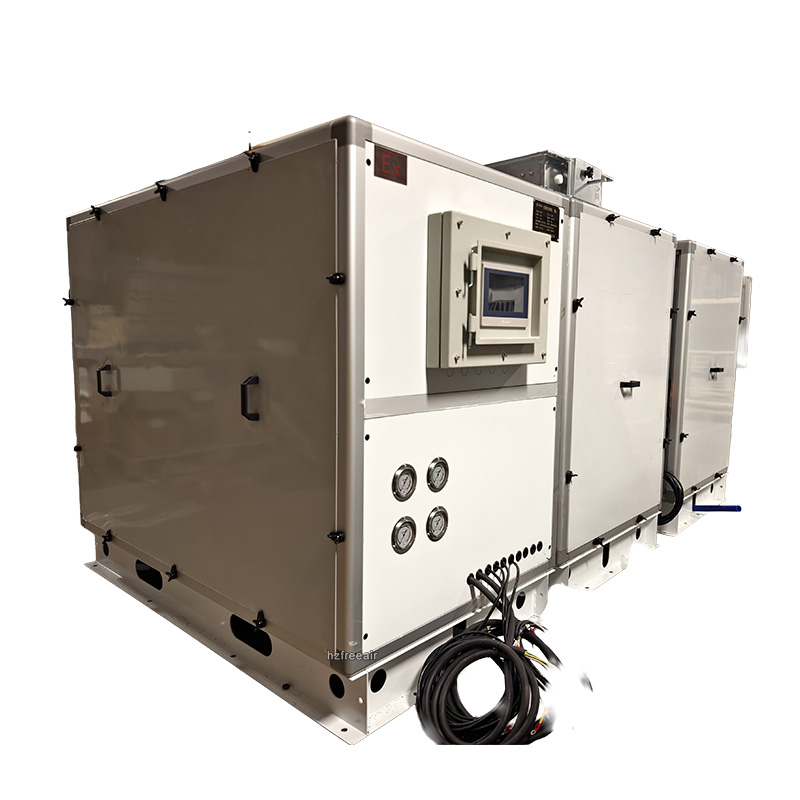

Name: Customized Water-cooled cooling dehumidifier

Model Number: FL-SL72



Product nameWater cooler dehumidifier
Model No.FL-SL72
Dehumidifying capacity50kg/h(30℃ 80%)
Refrigerant gasR410A
Nominal cooling capacity72 kW
Voltage380V/50Hz
Cycle air volume16000(m°/h

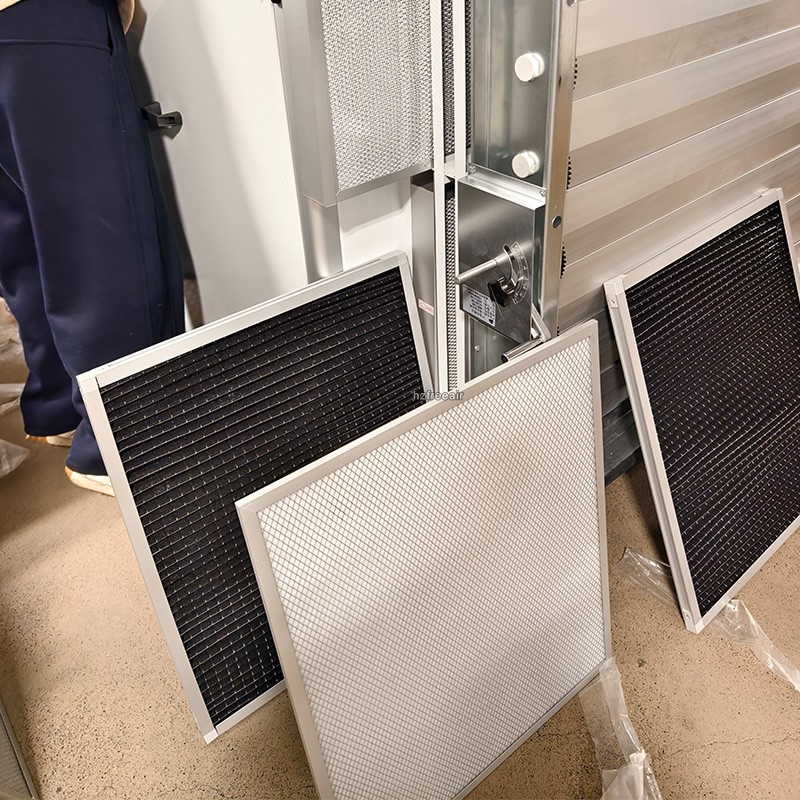

Air filter3models
Inlet and outlet pipe diametersRp2
Dehumidifier cooling water flow rate15.0T/H
Drainage pipe diameter25mm



Multiple control system

Intelligent control system, easy to operate, totally automaticlly running, no need person on duty.

More additional functions isoptional, like the centrized control(BMS), the dry contact etc.

PLC control system with 7" touch screen is in option.



External balance type

We adopting external balance type with Emerson expansionvalve and dry filter,

ensures the optimal adjustment ability oftemperature sensing components,

long service life, andhigh compressive strength.



All copper tube with aluminum fins

More bigger heat exchanger,greatly increase the efficiencyBetter dehumidification effect,

higher efficiency.Bigger heatexchanger,more fast the dehumidification effect.

More thickcopper tube,more long service life.


Suitable Area:

* Offices, Libraries, Computer rooms, Precision instrument rooms, Hospitals, Warehouses

* Chemical fiber, Pharmaceuticals, Glass, Food, Electronics, Metallurgy, Printing, Basements

* Electricity, Telecommunications, Cigarettes, Printing, Tea, Leather, Textiles

* Medical Instrument, Vegetables Frozen, Precise Instrument

* Wood Goods, Shipbuilding Painting Industry, Kinds of Storage

* Lithium Battery Industry, Biotechnology Pharmaceutical Industry


During the using process, it can help users to eliminate various losses caused by humidity, and make the production

and storage of products can be carried out in the right humidity, so as to ensure the quality of the products.


Why Choose Us

1)With a strong technical team with more then 10 years experience in refrigeration industry.

2)A variety of dehumidifiers,humidifiers and air conditioning units can be available,we also supply the thermostat&humidistat units.

3)We have not only the high quality products and competitive price, but also have excellent services too.

4)OEM & ODM are welcomed.
